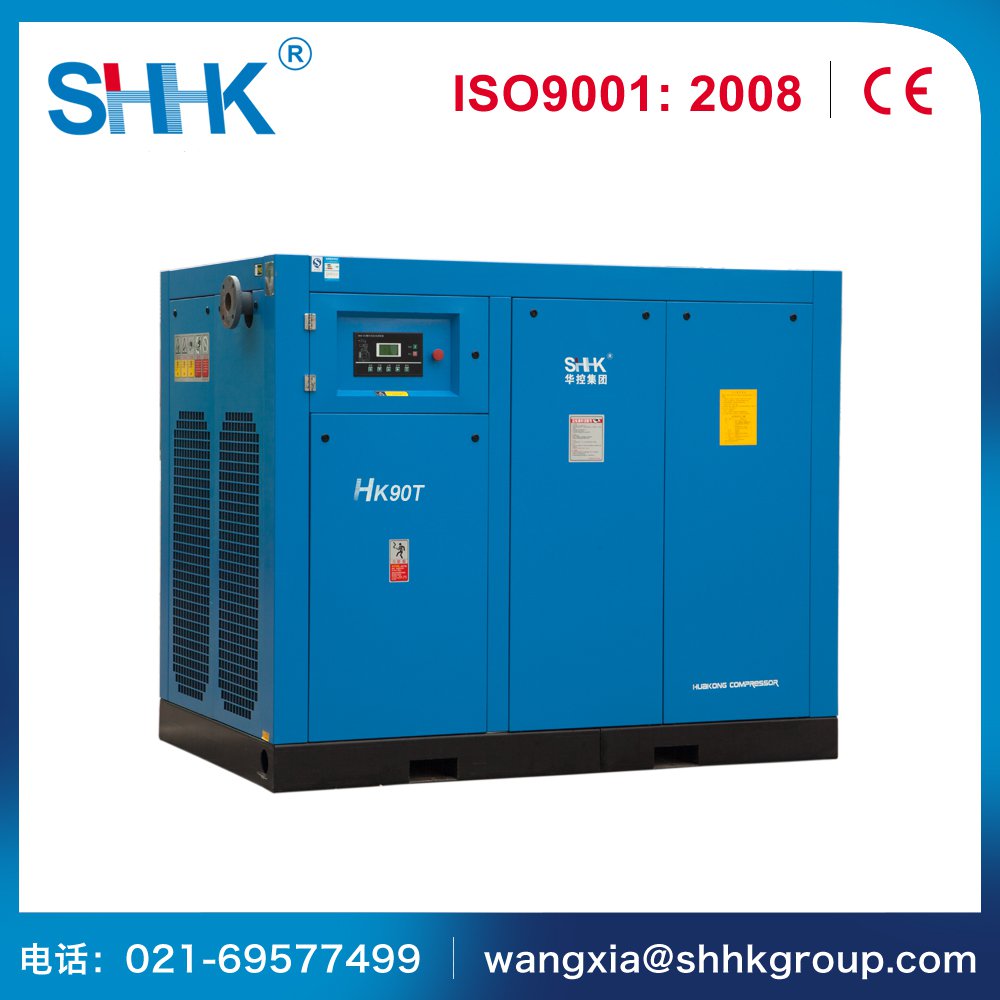

HK90T雙級別螺桿空壓機two-stage screw air compressor
雙極 雙級別 兩級 螺桿 壓縮機
品牌
華控型號
HK90T瀏覽次數
102 次所在地區
上海 上海 嘉定區參考最低價
數量
100
壓縮機商城提醒您： 如果賣家售價過低，請買家謹防欺詐行為！
———— 推薦商品 ————
商品介紹
品牌:華控
商品名稱:HK90T雙級別螺桿空壓機two-stage screw air compressor
商品編號:
分類:空氣壓縮機 雙螺桿空壓機
用途：風動工具,塑料機械用,礦用壓縮機,醫用壓縮機,噴砂，噴漆用
潤滑方式：有油
冷卻方式：風冷式
傳動方式：直聯
性能：低噪音
產品類型：固定式壓縮機
排氣壓力：0.8 MPa
壓縮機凈重：2600 kg
排氣含油量：3 PPM
電源：380/50 V/Hz/相
電機功率：90 kW
排氣量：20 m3/min
噪音：72 dB(A)
尺寸：2000*1400*1800 （mm）
全部1級能效
氣量增加15%air flow improve 15%
為什么采用雙級壓縮？Why use two-stage compression?
許多客戶會提出關于能量消耗、高可靠性和低維護成本等各種特殊要求。
為達到節能效果，采用降低壓縮比來實現能量節約。
Many customers have various special requirements on energy consumption, high reliability and low maintenance costs.
The use of lower compression ratio could achieve energy savings.
兩級壓縮在市場上屬于獨特的技術；
Two-stage compression is unique technology in the market.
針對節能要求高和對技術含量要求高的客戶要求來設計和制造；
It’s specially designed and manufactured for the customers who requires high-tech and energy saving.
雙級別螺桿空壓機技術參數表Two-stage screw air compressor technical parameter
|
型號 |
排氣量 |
功率 |
噪音 |
出口管徑 |
外形尺寸 |
重量 |
|
|
SHHK |
Capacity |
Power |
Noise |
Diameter of Air outlet |
Dimension |
Weight |
|
|
MODEL |
Mpa |
m³/min |
KW |
dB(A） |
INCH |
WxDxH mm |
Kg |
|
HK-75T |
0.8 |
15 |
75 |
72 |
G2” |
2020x1400x1600 |
2000 |
|
HK-90T |
0.8 |
20 |
90 |
72 |
DN65 |
2000x1400x1800 |
2600 |
|
HK-110T |
0.8 |
24 |
110 |
72 |
DN65 |
2000x1400x1800 |
3200 |
|
HK-132T |
0.8 |
28 |
132 |
75 |
DN80 |
2600x1750x1900 |
3500 |
|
HK-160T |
0.8 |
33 |
160 |
75 |
DN80 |
2600x1750x1900 |
4000 |
|
HK-185T |
0.8 |
37 |
185 |
78 |
DN100 |
2900x1800x2100 |
3600 |
|
HK-200T |
0.8 |
41 |
200 |
78 |
DN100 |
3030x1900x2200 |
4000 |
|
雙級壓縮螺桿主機：two-stage screw air compressor air end 合理分配壓縮比，優化軸承設計，軸承設計壽命＞1000,000小時 低噪音、低振動、高可靠性 雙級壓縮降低了單級壓縮比，減少內泄漏，提高容積效率，降低了軸承負載，提高了主機的壽命 Rational allocation of compression ratio, optimized bearing design, bearing design life> 1,000,000 hours Low noise, low vibration, high reliability Two-stage compression decreases the single-stage compression ratio, reduces the internal leakage as well as gets the volume efficiency improved, the load on the bearing decreased, as a result, the service life of air end prolonged. |
|
控制系統control system LCD高清顯示器 友好直觀界面，人性化菜單結構設計 可顯示多行運行參數和歷史記錄 世界名牌電控元件，安全可靠 操作簡捷，查詢、維護方便 LCD HD Monitor Friendly and intuitive interface, user-friendly menu structure design It can display multiple lines of operating parameters and history record World famous brand electronic control components, safe and reliable Simple operation, easy for inquiry and maintenance |
|
高效4級電機Efficient four-stage motor 起動轉矩大 絕緣等級F級，防護等級IP54 SKF軸承，噪聲低，壽命長 具加油裝置，不停機也可加油 Large starting torque insulation Class F, protection class IP54 SKF bearings, low noise, long life With refueling device, non-stop refueling can be conducted. |
|
高效進氣閥 High efficient intake valve 大口徑、低壓損 提高系統的穩定性能 確保啟動，運轉及停機階段有效地調節控制流量 Large diameter, low pressure loss System performance and stability improved Adjust and control the air flow effectively during the start-up, operation and stop phase. |
|
冷卻系統Cooling system 高效的冷卻系統設計是保證壓縮機可靠性的關鍵 離心冷卻風扇、靜音高效 大尺寸風扇電機 低功耗，低噪聲 Efficient cooling system design is the key to ensure reliability of the compressor Centrifugal cooling fan, quiet and efficient Large-sized fan motor Low power dissipation, low noise |
|
KKR過濾器KKR filter 專利保護產品 經實驗室嚴格測試，過濾效果達到99.99%或者更好 新型的設計，大大降低進氣阻力，同時提升售后市場的保護 Patent protection products After rigorous laboratory test, filtration can reach 99.99% or better The new design greatly reduces the intake resistance, meanwhile, the after-sale market get protected. |
